Pedestal Mounted Stainless Steel Toilet Partitions

Pedestal-mounted, stainless steel toilet partitions offer enhanced privacy and allow for easy floor maintenance. With support at the top but no shoes required, toilet partitions appear to be floating.

Download Stainless Steel Brochure
  • Available finishes: #4 brushed, embossed or hybrid (#4 brushed on the outside for a clean look and embossed on the inside for enhanced durability)
  • Fast, reliable lead times ensure on-time project completion
  • Ideal for environmentally sensitive projects; recycled content of 91% (76% post-consumer and 15% pre-consumer)
  • Industry-best fire resistance
  • Available with the "no-sightline solution," which eliminates sightline gaps, as well as other privacy options
  • Structurally reinforced with verticel honeycomb throughout to enhance strength, sound absorption and impact resistance

Specifications

Elite 64" | Elite Plus 72" | Elite Max 84" or 92"

Elite Series Powder Coated Headrail Braced Toilet Partition

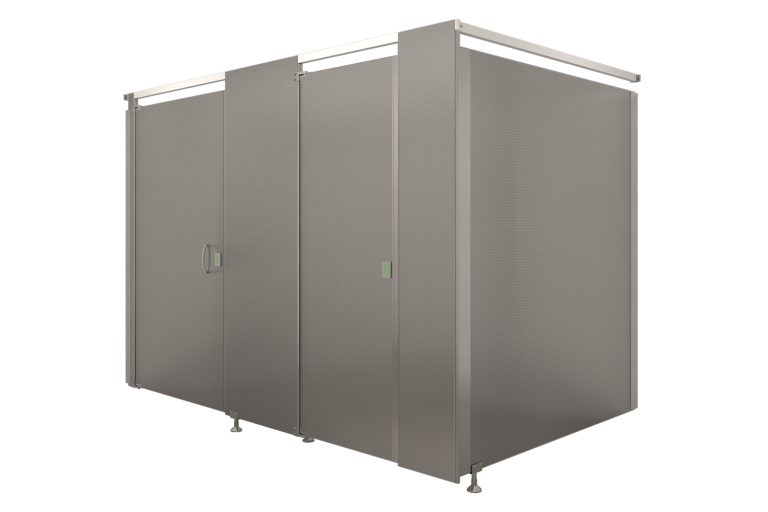

Elite Series 64"

Our Elite series of pedestal-mounted, stainless steel partitions offers greater privacy with 64 in. (1,626 mm.)-high doors and panels, mounted just 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. Continuous channels eliminate all sightline gaps.

Elite Plus Series Powder Coated Headrail Braced Toilet Partition

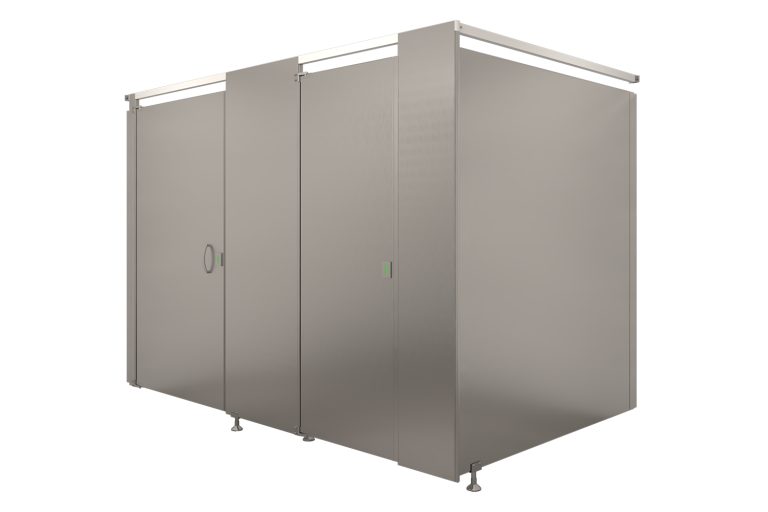

Elite Plus Series 72"

Our Elite Plus pedestal-mounted, stainless steel partitions afford maximum privacy with 72 in. (1,829 mm.)-high doors and panels, mounted just 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. Continuous channels eliminate all sightline gaps.

Elite Max Series Stainless Steel Pedestal Mounted Toilet Partition

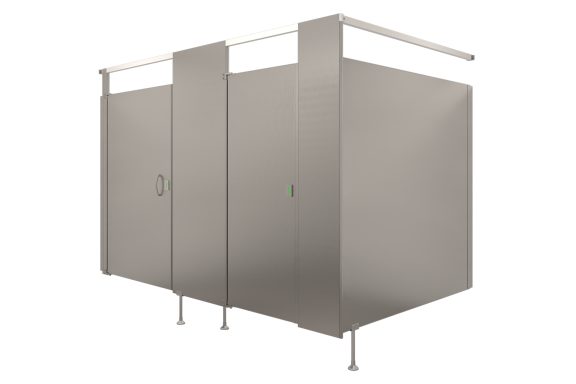

Elite Max Series 84" or 92"

Reach new heights with Elite Max pedestal-mounted, stainless steel toilet partitions, which feature 92 in. (2,336 mm.)-high doors and panels, mounted 4 in. (102 mm.), 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. The continuous stop, hinge filler and continuous channel are made to match the height of the partition.

BIM Files

Installation & Care

Finishes

#4 Brushed Stainless Steel

900 #4 Brushed Stainless Steel

Embossed Stainless Steel

90R Embossed Stainless Steel

 Stainless Steel

Headrail-braced, Type 304, #4 brushed stainless steel toilet partitions are available for Premium Quick Ship (subject to upcharge) and Quick Ship in the USA Lockers are not available in stainless steel. 

Upgrades

​​Continuous Hinge​

​​Continuous Hinge​​​

Our continuous stainless steel hinge matches the finish of stainless steel partitions, while covering the full height of the door. Featuring a stainless steel hinge pin, this heavy-duty option also obstructs the sightline on the hinge side of the door.

​​Full-height Continuous Channels​

​​Full-height Continuous Channels​

Full-height stainless steel continuous channels are available to eliminate the sightline gaps for all panel-to-pilaster, panel-to-wall and pilaster-to-wall connections.

​​Junior-height Toilet Partitions ​

​​Junior-height Toilet Partitions

Ideal for preschools and other facilities that cater to younger children, junior-height toilet partitions feature shorter-than-normal doors (48 in. high) yet utilize full-height pilasters. Junior-height partitions are available in headrail braced and floor mounted styles.
