Ceiling Hung Solid Plastic Toilet Partitions

Ceiling hung, solid plastic partitions present a clean, contemporary appearance and are recommended for modernization where a drop ceiling or open-pan construction can be used. This type of installation connects partitions to the ceiling and do not have a floor base; floor-to-ceiling pilasters may be required for some layout conditions.

Download Solid Plastic Brochure
Download Solid Plastic Color Card
  • Choice of high-performing, Certified Class B HDPE solid plastic colors that meet ASTM E84 standards or NFPA 286 solid plastic colors at an extra cost
  • Material has a solid plastic core with no foaming agents, which can cause the formation of air pockets
  • Easy to maintain, an ideal choice for harsh environments
  • Round barrel hinges, stop, keeper, latch, channels and brackets are made of heavy-duty aluminum
  • Available in stainless steel, fasteners are theft-proof, 6-lobe, security head screws that deter vandalism
  • Cap-over headrail ensures easy and rigid finished installation; convenient snap-fit design for joining two pieces together without extra fasteners

Specifications

BIM / CAD Files

Installation & Care

Colors

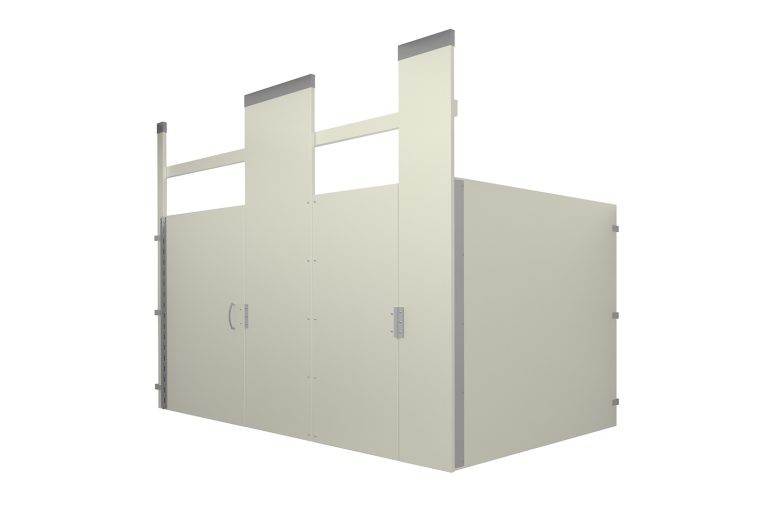

213 Bone

213 Bone

223 Linen

223 Linen

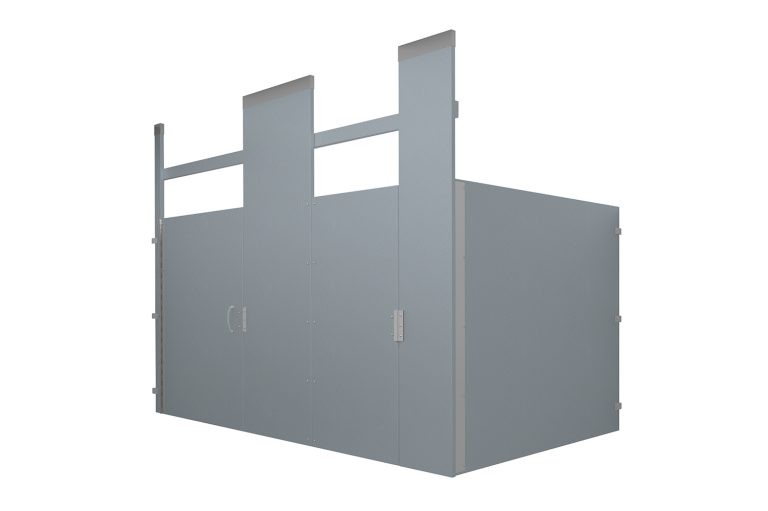

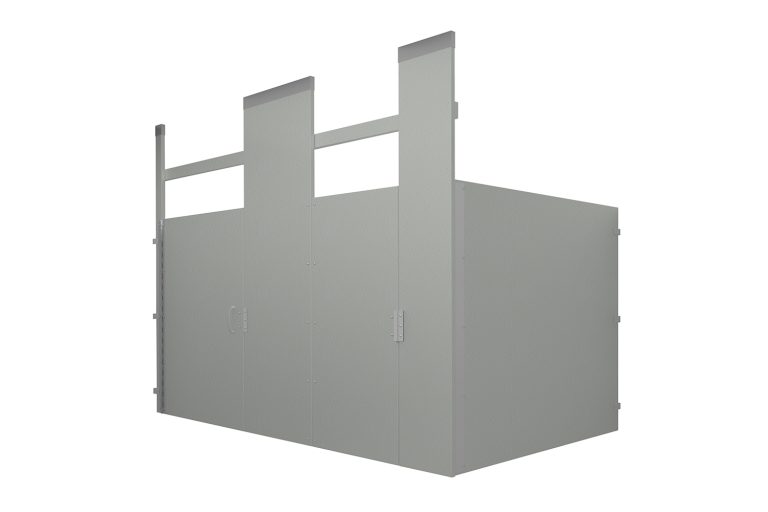

239 Gray

239 Gray

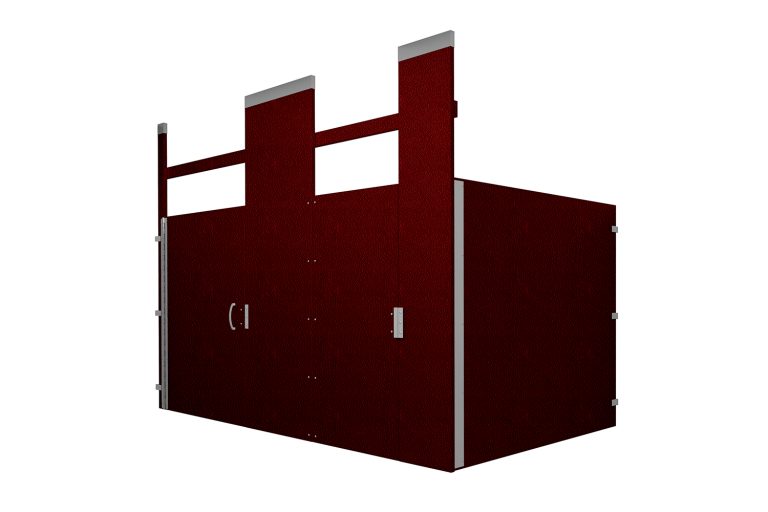

215 Burgundy

215 Burgundy

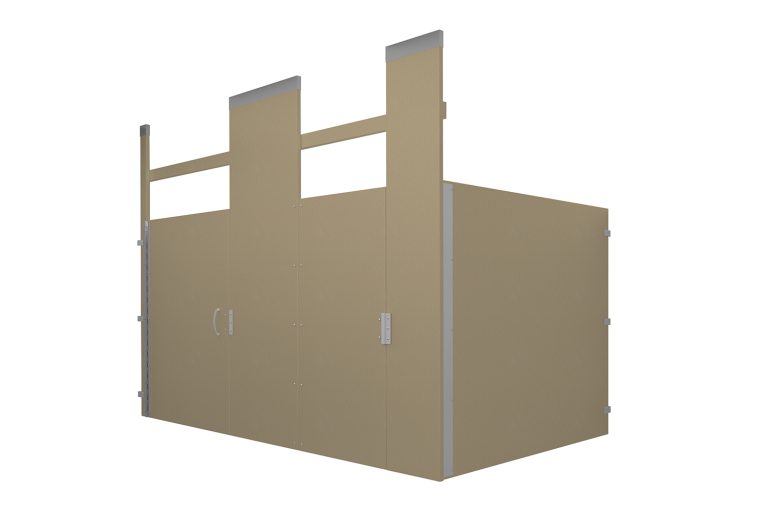

218 Fossil

218 Fossil

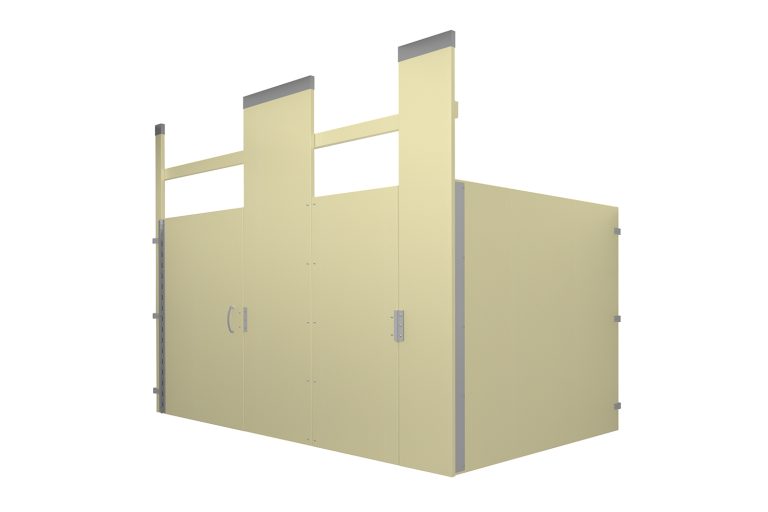

238 Almond

238 Almond

231 Slate

231 Slate

212 Blueberry

212 Blueberry

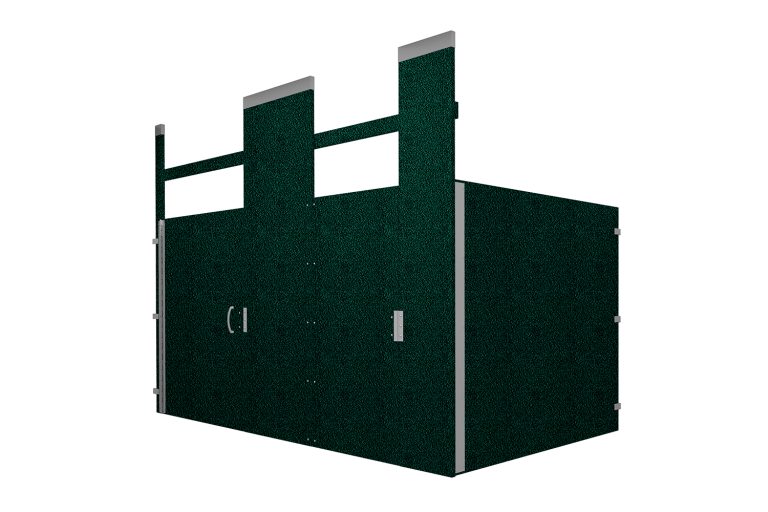

222 Hunter

222 Hunter

225 Mocha

225 Mocha

227 Paisley

227 Paisley

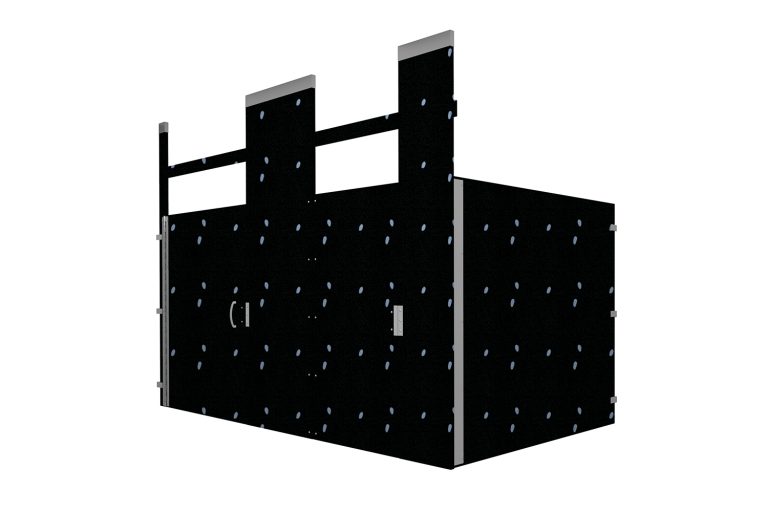

211 Black

211 Black

217 Canyon Granite

217 Canyon Granite

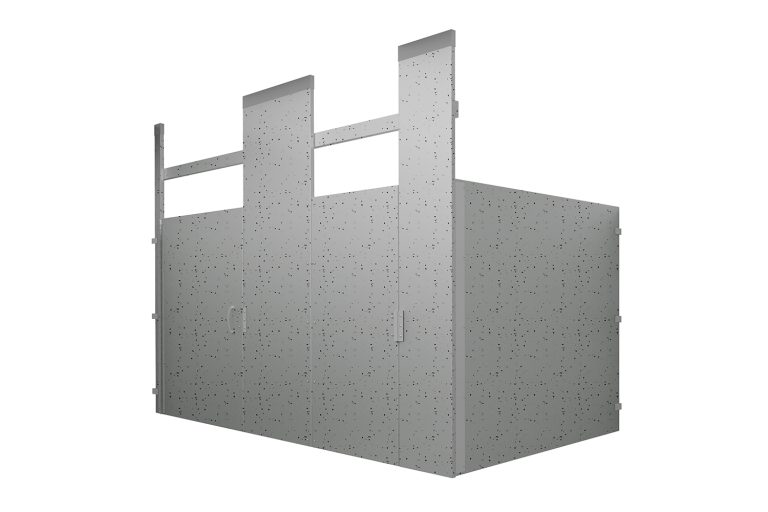

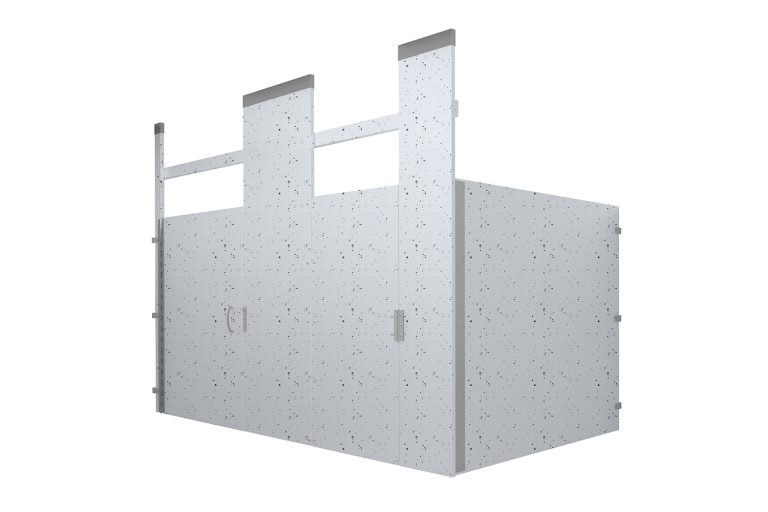

219 Frost Granite

219 Frost Granite

Certified CLASS B, fire-rated HDPE has a flame spread index of 26-75 and a smoke developed index of 0-450.

NFPA 286 plastic is available in the following colors, at an upcharge: 211 Black, 212 Blueberry, 223 Linen, 227 Paisley, 231 Slate and 239 Gray. NFPA 286 colors may be slightly darker than Class B colors.

Colors shown are approximations only. For accurate color matches, refer to our printed color card. Hadrian reserves the right to change colors and/or finishes without prior notice.

Upgrades

​​Continuous Hinge​

​​Continuous Hinge​​​

Hadrian’s heavy-duty, 14-gauge continuous hinge is a smart choice for high-traffic facilities, such as schools and institutions. This 54 in. (1,372 mm.)-high stainless steel hinge covers the full height of the door and features a stainless steel hinge pin. It fastens to both the door and the pilaster with 6-lobe security head, stainless steel through-bolts for extra support. As a bonus, this item also acts as a no-sightline feature on the hinge side of the door.

​​Full-height Aluminum Channels​

​​Full-height Aluminum Channels​

This option is a continuous channel that eliminates the sightline gaps for all panel-to-pilaster, panel-to-wall and pilaster-to-wall connections.

Stainless Steel Hardware

​​Stainless Steel Hardware​

Upgrade to stainless steel hardware for strength and added style.

  • Full-height stainless steel channels also eliminate sightline gaps for all panel-to-pilaster, panel-to-wall and pilaster-to-wall connections
  • Stainless steel continuous hinge
  • Stainless steel latch
  • Stainless steel stop and keeper
  • #4 brushed stainless steel shoes
​​Integral Hinge​

​​Integral Hinge​

Our integral hinge system provides a clean, uncluttered appearance. The hinge pin and bottom cam are recessed into the door and pilaster to eliminate the need for exposed fasteners on the hinge side. Inconspicuous and virtually maintenance-free, the integral hinge is a great alternative to our standard wrap-around offering. Integral hinge is available for the headrail-braced style only.

Back to Product Details Top

Explore Other Solid Plastic Configurations

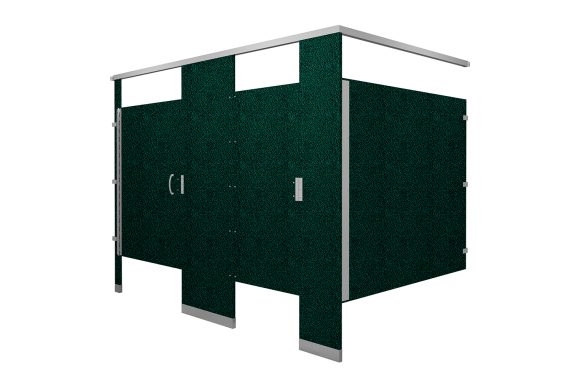

Solid Plastic Headrail Braced Toilet Partitions
