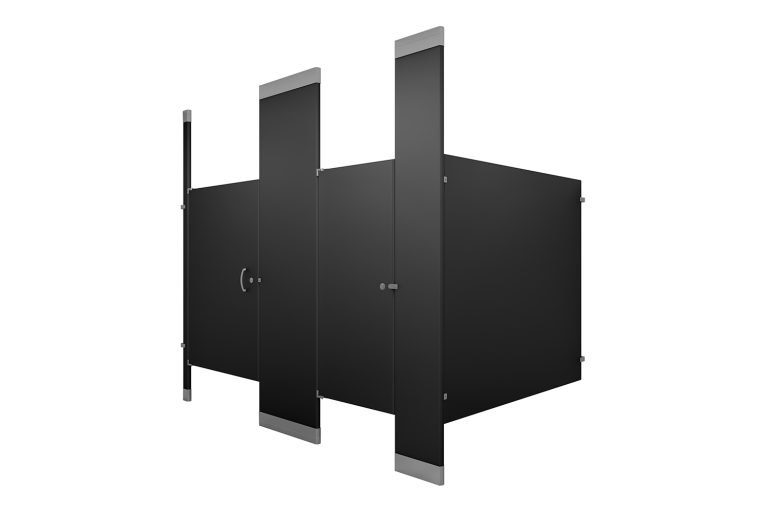

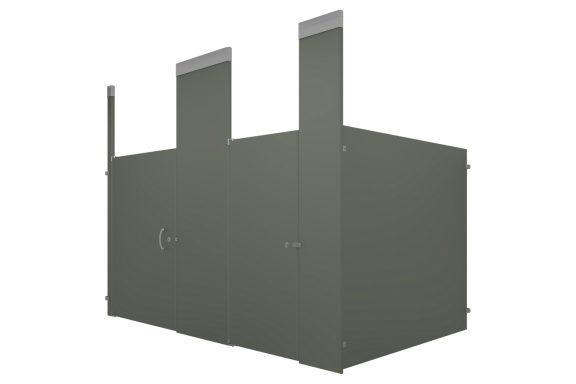

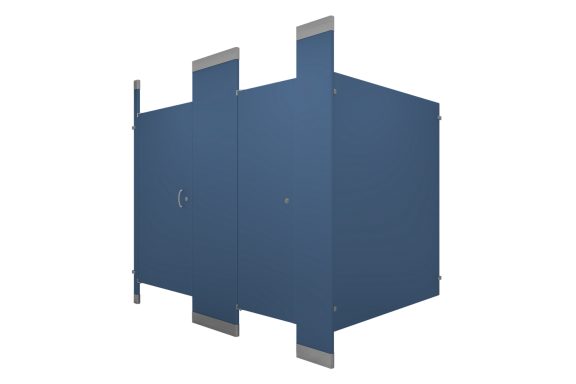

Floor to Ceiling Powder Coated Toilet Partitions​

Floor-to-ceiling, powder coated toilet partitions are extremely strong and resistant to abuse because they are securely connected to the floor, ceiling and walls. This installation type is ideal for busier areas, like schools and other spaces that require extra security.

Download Powder Coated Brochure
Download Powder Coated Color Card
  • Powder coated finish outperforms other paint with its thick and even finish that’s durable and combats rust
  • Fast, reliable lead times ensure on-time project completion
  • Ideal for environmentally sensitive projects; recycled content of 50% (36% post-consumer and 14% pre-consumer)
  • Industry-best fire resistance
  • Available with the "no-sightline solution," which eliminates sightline gaps, as well as other privacy options
  • Lightweight material keeps freight costs down and is easier to install, often needing only one person

Specifications

Standard 58" | Elite 64" | Elite Plus 72" | Elite Max 84" or 92"

Standard Series Powder Coated Floor to Ceiling Toilet Partition

Standard Series 58″

Our standard privacy series of floor-to-ceiling, powder coated partitions features 58 in. (1,473 mm.)-high doors and panels, which are mounted 12 in. (305 mm.) above the finished floor.

Elite Series Powder Coated Floor to Ceiling Toilet Partition

Elite Series 64"

Our Elite floor-to-ceiling, powder coated partitions offer more privacy with 64 in. (1,626 mm.)-high doors and panels, mounted just 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. Continuous channels eliminate all sightline gaps.

Elite Plus Series Powder Coated Floor to Ceiling Toilet Partition

Elite Plus Series 72"

Taking the Elite concept a step further, our Elite Plus option affords maximum privacy with 72 in. (1,829 mm.)-high doors and panels, mounted just 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. Continuous channels eliminate all sightline gaps.

Elite Max Series Powder Coated Floor to Ceiling Toilet Partition

Elite Max Series 84" or 92"

Reach new heights of privacy with Elite Max floor-to-ceiling, powder coated toilet partitions. 92 in. (2,336 mm.)-high doors and panels, mounted 4 in. (102 mm.), 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. The continuous stop, hinge filler and continuous channel are made to match the height of the partition. Also available in headrail braced.

BIM / CAD Files

Installation & Care

Colors

Solid Colors

504 Linen

504 Linen

603 Almond

603 Almond

535 Light Grey

535 Light Grey

585 Sahara

585 Sahara

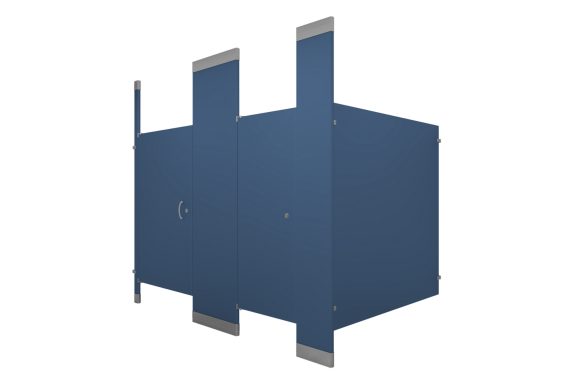

609 Colonial Blue

609 Colonial Blue

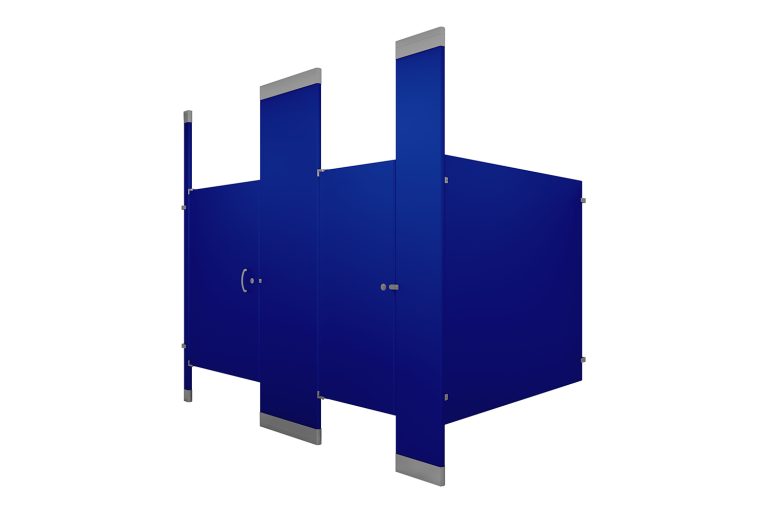

639 Sapphire Blue

639 Sapphire Blue

576 Ruby Red

576 Ruby Red

607 Bordeaux

607 Bordeaux

510 Black

510 Black

532 Latte

532 Latte

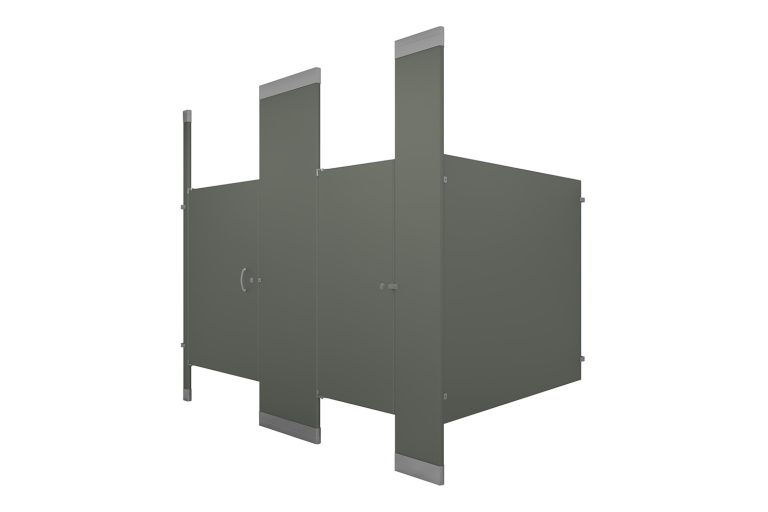

621 Slate

621 Slate

545 Charcoal

545 Charcoal

541 Extra White

541 Extra White

500 White

500 White

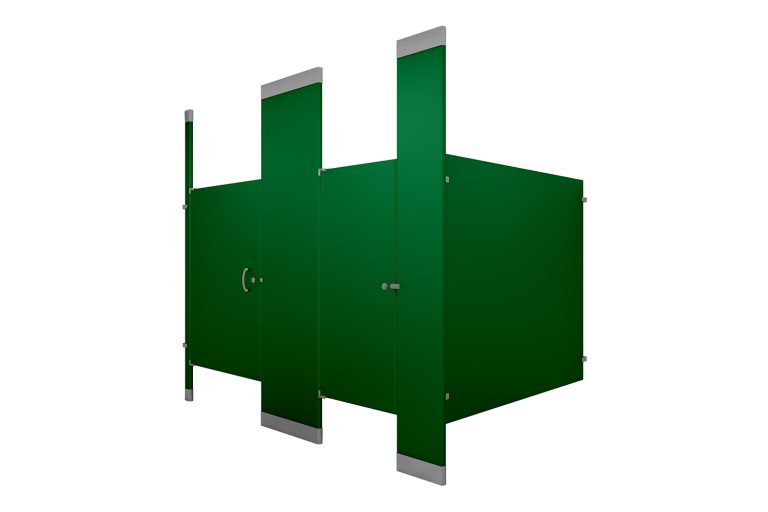

581 Moss Green

581 Moss Green

Anti-graffiti

Proven ASTM D6678 Graffiti Resistance to easily remove:

  • Permanent Marker
  • Lipstick
  • Water-based Ink Marker
  • Wax Crayon
  • Spray Paint
833 Tricorn Black

833 Tricorn Black

Subject to upcharge

828 Dovetail

828 Dovetail

Subject to upcharge

829 Desert

829 Desert

Subject to upcharge

826 Kilim Beige

826 Kilim Beige

Subject to upcharge

Special Effects

837 Black Fox

837 Black Fox

Subject to upcharge

814 Cast Iron Metallic

814 Cast Iron Metallic

Subject to upcharge

831 Nickel Metallic

831 Nickel Metallic

Subject to upcharge

Star

Headrail-braced toilet partitions available for Premium Quick Ship in USA; subject to upcharge. 

USA

Headrail-braced (including Elite 6 in. and 9 in. AFF), ceiling-hung (for 9-ft. ceilings and lower) and floor-mounted toilet partitions available for Quick Ship in USA. 

Canada

Headrail-braced toilet partitions available for Quick Ship in Canada. 

 Stainless Steel

Headrail-braced, Type 304, #4 brushed stainless steel toilet partitions are available for Premium Quick Ship (subject to upcharge) and Quick Ship in the USA Lockers are not available in stainless steel. 



Custom Colors

For custom colors, a minimum of 20 units for toilet partitions and 100 units for lockers is required per color. Custom colors are subject to upcharge.

Colors shown are approximations only. For accurate color matches, refer to Hadrian's printed color card. Hadrian reserves the right to change colors and/or finishes without prior notice.

Upgrades

Heavy Duty Continuous Hinge

​​Heavy-duty Continuous Hinge​

Our economically priced continuous hinge is ideal for high-abuse areas where extra strength and durability are needed. Made with heavy-duty material, the continuous hinge is available in a brushed stainless steel finish. Stainless steel hinge pin is standard. For added value, our continuous hinge obstructs the sightline on the hinge side of the door.

Stainless Steel Hardware Package

​​Stainless Steel Hardware Package​

Upgrade to a stainless steel hardware package, featuring:

  • Stamped stainless steel, #4 brushed pilaster, panel and screen brackets
  • Cast stainless steel, #4 brushed wrap-around door hinges
  • Stainless steel, #4 brushed TR-27 6-lobe security screws
  • Stainless steel, #4 brushed pilaster shoes
Full Height Continuous Channels

​​Full-height Continuous Channels​

Full-height powder coated continuous channels are available to eliminate the sightline gaps for all panel-to-pilaster, panel-to-wall and pilaster-to-wall connections.

​​Junior-height Toilet Partitions

​​Junior-height Toilet Partitions

Ideal for preschools and other facilities that cater to younger children, junior-height toilet partitions feature shorter-than-normal doors (48 in. high) yet utilize full-height pilasters. Junior-height partitions are available in headrail braced and floor mounted styles.

Back to Product Details Top

Explore Other Powder Coated Configurations

Powder Coated Headrail Braced Toilet Partitions in Deep Red

Headrail Braced Toilet Partitions

Shown: Powder Coated in Bordeaux

View Headrail Braced
Powder Coated Ceiling Hung Toilet Partitions

Ceiling Hung Toilet Partitions

Shown: Powder Coated in Charcoal

View Ceiling Hung

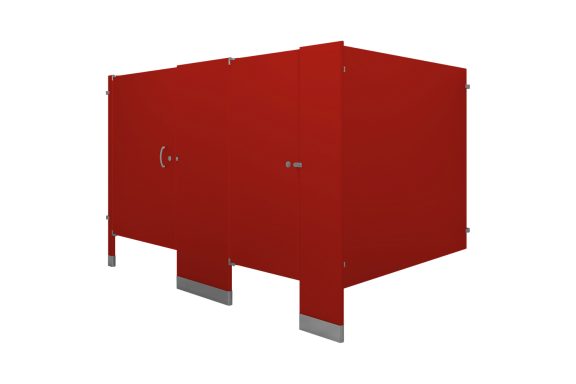

Powder Coated Floor Mounted Toilet Partitions
