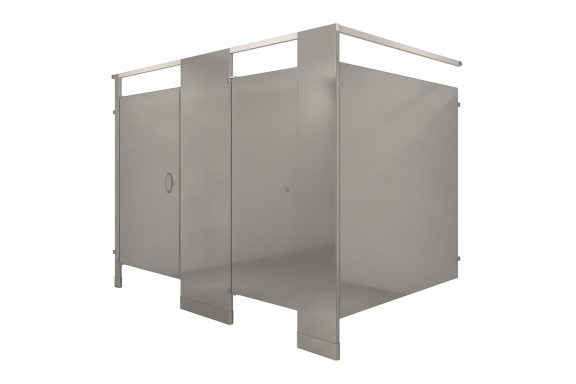

Headrail Braced Stainless Steel Toilet Partitions

Headrail-braced, stainless steel restroom partitions are the ideal solutions for heavy-use applications, such as schools, institutions and industrial settings. The anti-grip top rail deters boisterous activity and ensures a rigid and secure installation from top to bottom.



  • Available finishes: #4 brushed, embossed or hybrid (#4 brushed on the outside for a clean look and embossed on the inside for enhanced durability)
  • Fast, reliable lead times ensure on-time project completion
  • Ideal for environmentally sensitive projects; recycled content of 91% (76% post-consumer and 15% pre-consumer)
  • Industry-best fire resistance
  • Available with the "no-sightline solution," which eliminates sightline gaps, as well as other privacy options
  • Structurally reinforced with verticel honeycomb throughout to enhance strength, sound absorption and impact resistance

Specifications


Elite Series Stainless Steel Headrail Braced Toilet Partition

Elite Series 64"

Our Elite headrail-braced, stainless steel partitions offer greater privacy with 64 in. (1,626 mm.)-high doors and panels, mounted just 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. Continuous channels eliminate all sightline gaps.




Elite Max Series Stainless Steel Headrail Braced Toilet Partition

Elite Max Series 84" or 92"

Go big with our Elite Max toilet partitions. 92 in. (2,336 mm.)-high doors and panels, mounted 4 in. (102 mm.), 6 in. (152 mm.) or 9 in. (229 mm.) above the finished floor. The continuous stop, hinge filler and continuous channel are made to match the height of the partition. Also available as a floor-to-ceiling configuration.


BIM Files


Installation & Care

Finishes

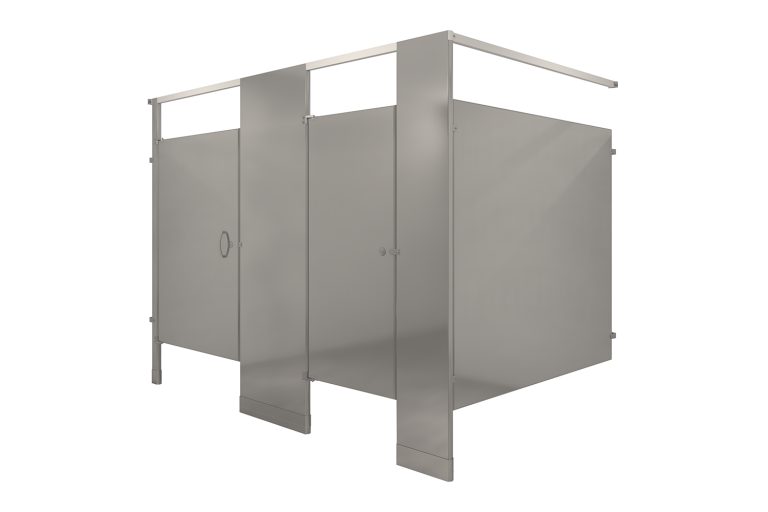

#4 Brushed Stainless Steel

900 #4 Brushed Stainless Steel

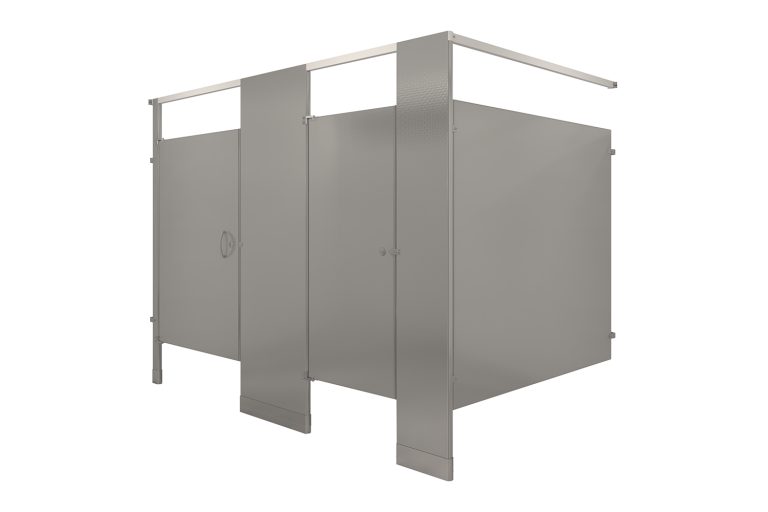

Embossed Stainless Steel

90R Embossed Stainless Steel


 Stainless Steel

Headrail-braced, Type 304, #4 brushed stainless steel toilet partitions are available for Premium Quick Ship (subject to upcharge) and Quick Ship in the USA Lockers are not available in stainless steel. 

Upgrades

​​Continuous Hinge​

​​Continuous Hinge​​​

Our continuous stainless steel hinge matches the finish of stainless steel partitions, while covering the full height of the door. Featuring a stainless steel hinge pin, this heavy-duty option also obstructs the sightline on the hinge side of the door.

​​Full-height Continuous Channels​

​​Full-height Continuous Channels​

Full-height stainless steel continuous channels are available to eliminate the sightline gaps for all panel-to-pilaster, panel-to-wall and pilaster-to-wall connections.

​​Junior-height Toilet Partitions ​

​​Junior-height Toilet Partitions

Ideal for preschools and other facilities that cater to younger children, junior-height toilet partitions feature shorter-than-normal doors (48 in. high) yet utilize full-height pilasters. Junior-height partitions are available in headrail braced and floor mounted styles.


Explore Other Stainless Steel Configurations

Stainless Steel Ceiling Hung Toilet Partitions

Ceiling Hung Toilet Partitions

Shown: Standard Embossed Stainless Steel

Stainless Steel Floor Mounted Toilet Partitions

Floor Mounted Toilet Partitions

Shown: Standard Embossed Stainless Steel

Stainless Steel Floor to Ceiling Toilet Partitions

Floor to Ceiling Toilet Partitions

Shown: Elite Plus Brushed Stainless Steel

Stainless Steel Pedestal Mounted Toilet Partitions

Pedestal Mounted Toilet Partitions

Shown: Elite Max Embossed Stainless Steel
