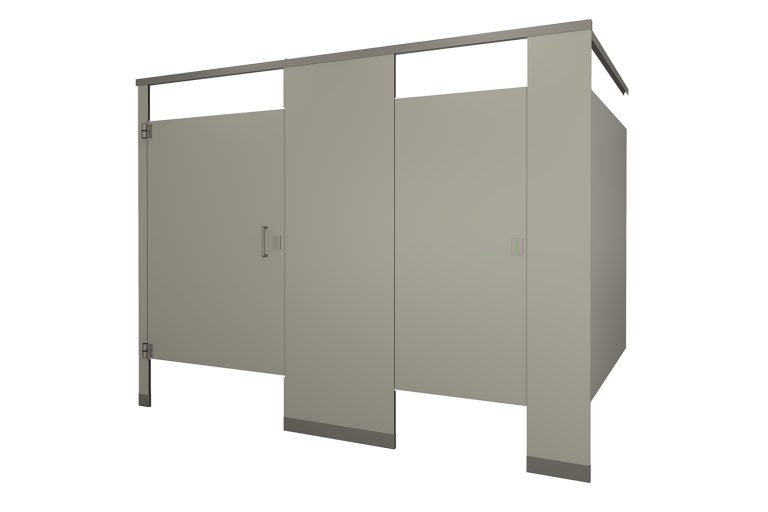

Phenolic Headrail Braced Dove Grey Toilet Partition

312 Dove Grey

Phenolic Headrail Braced Brushed Aluminum Toilet Partition

314 Aluminum

324 Citadel Warp

Phenolic Headrail Braced Pewter Mesh Toilet Partition

319 Pewter Mesh

Phenolic Headrail Braced Black Toilet Partition

311 Black

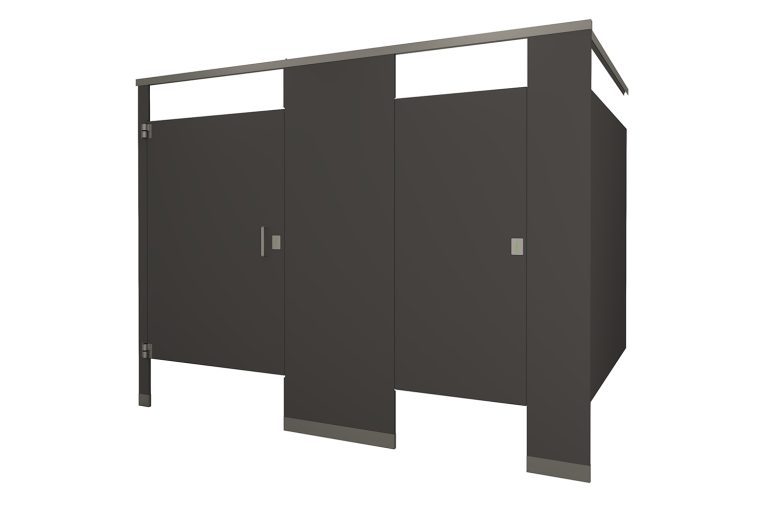

Phenolic Headrail Braced Dark Grey Toilet Partition

315 Dark Grey

323 Neutral Weft

Phenolic Headrail Braced Sheer Mesh Toilet Partition

316 Sheer Mesh

Phenolic Headrail Braced Daylight Toilet Partition

313 Daylight

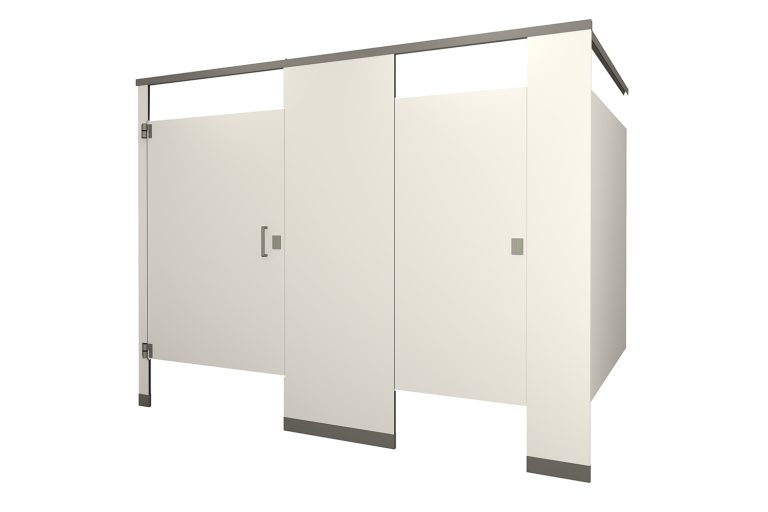

Phenolic Headrail Braced Ultra White Toilet Partition

310 Ultra White

Weathered Ash
Cello
Portico Teak Phenolic Headrail Braced
Silveretta
Field Elm Phenolic Headrail Braced
Espresso Pear
Florence Walnut Phenolic Headrail Braced
Graphite Grafix
Graphite Nebula Phenolic Headrail Braced
Dove Grey Phenolic Headrail Braced
Aluminum Lan Phenolic Headrail Braced
Citadel Warp
Pewter Mesh Phenolic Headrail Braced
Black Phenolic Headrail Braced
Dark Grey Phenolic Headrail Braced
Neutral Weft
Sheer Mesh Phenolic Headrail Braced
Daylight Phenolic Headrail Braced
Ultra White Phenolic Headrail Braced

Headrail-braced phenolic toilet partitions offer a rigid and secure installation with an anti-grip top rail that deters vandalism and unusual activity. They're a great choice for any facility but work especially well in heavy-use areas such as schools, institutions, and industrial settings. The solid phenolic core is resistant to water, stains, and impact, it endures heavy usage.

Download Phenolic Color Card

Download Phenolic Sell Sheet

Download Specifications

Doors and pilasters overlap to eliminate sightlines, making them ideal for all-gender and unisex restrooms
Class A flame spread index is 0-25; Class A and B smoke developed index 0-450
Choice of stylish brushed stainless steel or matte black hardware
Scratchproof material won't fade, crack or delaminate and resists oil, chemicals and bacteria
Occupancy indicator latch flips from green to red when stall is in use for enhanced privacy

Specifications
BIM / CAD
Installation & Care
Colors
Upgrades

Specifications

Standard 58" | Elite Plus 72" | Elite Max 84" or 92"

Elite Plus Series Phenolic Headrail Braced Toilet Partitions

Standard Series 58"

Our standard privacy series of phenolic toilet partitions features 58 in. (1,473 mm.)-high doors and panels, mounted 12 in. (305 mm.) above the finished floor.

Material Specifications

Headrail Braced Phenolic Stainless Steel Hardware Specs (pdf)

Headrail Braced Phenolic Matte Black Hardware Specs (pdf)

3-part Specifications:

Phenolic 3-part Specs (doc)

Elite Plus Series 72"

Our Elite Plus phenolic partitions offer maximum privacy, with 72 in. (1,829 mm.)-high doors and panels, mounted either 4 in. (102 mm.) or 9 in. (229 mm.) off the floor. The continuous channel is designed to match the height of the partition.

Material Specifications

Headrail Braced Phenolic Stainless Steel Hardware Elite Plus Specs (pdf)

Headrail Braced Phenolic Matte Black Hardware Elite Plus Specs (pdf)

3-part Specifications:

Phenolic 3-part Specs (doc)

Elite Max Series Phenolic Headrail Braced Toilet Partitions

Elite Max Series 84" or 92"

Add ultimate privacy with our Elite Max toilet partitions, available in 84 in. (2,134 mm.) and 92 in. (2,337 mm.)-high doors, with panels mounted 4 in. (102 mm.) or 9 in. (229 mm.) above the finished floor. The continuous channel matches the height of the partition.

Material Specifications

Headrail Braced Phenolic Stainless Steel Hardware Elite Max Specs (pdf)

Headrail Braced Phenolic Matte Black Hardware Elite Max Specs (pdf)

3-part Specifications:

Phenolic 3-part Specs (doc)

BIM / CAD Files

BIM

Headrail Braced Phenolic (zip)

Headrail Braced Phenolic Color Options (zip)

CAD

Headrail Braced Phenolic Standard (dxf)

Headrail Braced Phenolic Elite Plus (dxf)

Headrail Braced Phenolic Elite Max (dxf)

Installation & Care

Phenolic Installation Manual (pdf)

Phenolic Maintenance Procedure (pdf)

Colors

326 Weathered Ash
Class B

329 Cello
Class A

320 Portico Teak
Class B

328 Silveretta
Class A

317 Field Elm
Class B

327 Espresso Pear
Class B

318 Florence Walnut
Class B

325 Graphite Grafix
Class B

321 Graphite Nebula
Class B

312 Dove Grey
Class B

314 Aluminum
Class A

324 Citadel Warp
Class B

319 Pewter Mesh
Class B

311 Black
Class A

315 Dark Grey
Class A

323 Neutral Weft
Class B

316 Sheer Mesh
Class B

313 Daylight
Class A

310 Ultra White
Class A

Upgrades

Indicator Latch

With an indicator surface area over 150% larger than competitive offerings, Hadrian’s unique indicator latch makes it faster and easier for guests to identify vacancies. Complete with TR-27 6-lobe fasteners to deter vandalism and a discreet emergency access feature, this attractive latch is available on phenolic partitions in either a matte black or #4 brushed finish.
